Kenmerken

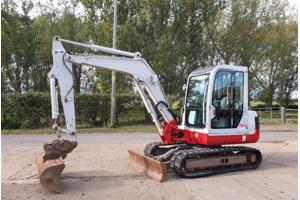

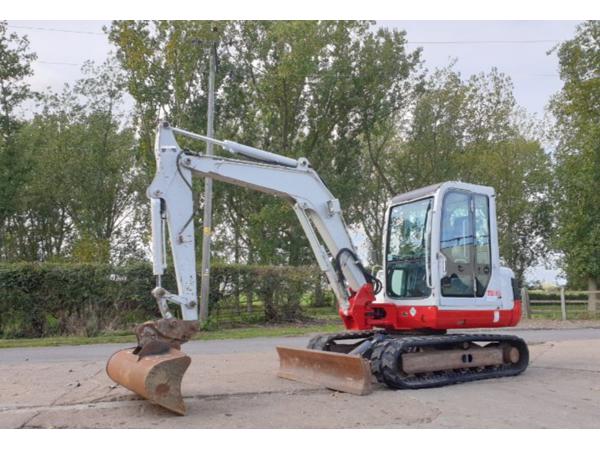

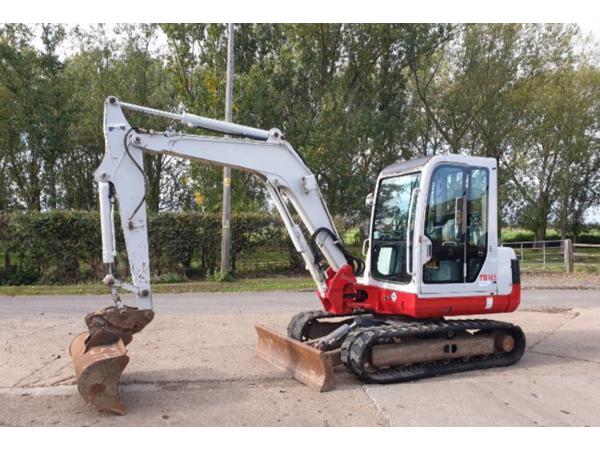

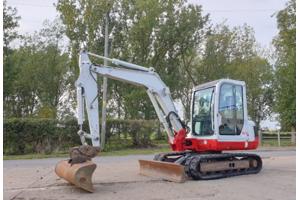

| Merk | TAKEUCHI |
|---|---|
| Type / soort | TB145 |
Beschrijving
4-cylinder Yanmar engine and a swing speed of 9.9 RPM.Dimensions & Weight:
Operating Weight: Approximately 10,761 lbs (4,825 kg).
Length: Approximately 5520 mm (18 ft 1.5 in).
Width: 1840 mm (6 ft 0.4 in).
Height: 2555 mm (8 ft 4.4 in).
Track Width: 400 mm (15.7 in).
Engine:
Make/Model: Yanmar 4TNE88-TB.
Rated Output/RPM: 27.9 kW / 2300 RPM.
Maximum Torque: 145.1 Nm.
Cylinders/Displacement: 4 / 2190 cc.
Operating Information:
Max. Dig Depth: 3810 mm (12 ft 6.3 in).
Max. Dump Height: 4170 mm (13 ft 7.7 in).
Max. Reach at Ground Level: 6015 mm (19 ft 8.7 in).
Max. Vertical Dig Depth: 3050 mm (10 ft 0.1 in).
Max. Bucket Dig Force: 36.5 kN.
Max. Arm Dig Force: 25.4 kN.
Hydraulic System:
Pump Type: Variable (P1+P2) + Gear (P3).
Hydraulic Flow: 55.9 x 2 + 32.4 l/min.
Auxiliary Flow: 59 l/min.
Set Pressure: 210 bar.
Advertentienummer: 287916
